Deskripsi Produk
Description

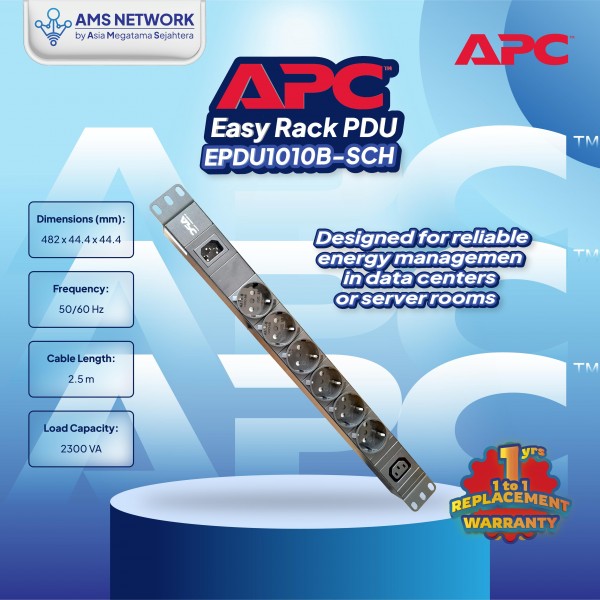

It’s an Easy rack PDU basic model to be placed horizontally (19” rack-mountable) with 230VAC as nominal voltage Its input circuit is 10A with one C13 and six SCHUKO output receptacles The input cord length is 2.5m The housing material is aluminum extrusion Its operating condition is from -5˚C to +45 ˚C, 5-95% RH non-condensing You can use four M6x16mm screws and four M6 cage nut for the rack mounting brackets It has CE certification with one year warranty
Specifications
Overview
| Lead time |
Usually in Stock |
Main
| Colour |
Black |
| Product or component type |
PDU |
| PDU type |
Basic |
| Cord length |
2.5 m |
| Number of cables |
1 |
| Provided equipment |
Installation guide
Toolless mounting kit
Rack mounting brackets |
Complementary
| Input Voltage |
200...240 V |
| Height |
44.4 mm |
| width |
482 mm |
| Output Voltage |
200...240 V |
| Depth |
44.4 mm |
| Net weight |
0.6 kg |
| Mounting location |
Front
Rear |
| Mounting preference |
No preference |
| Input Plug Type |
IEC 320 C14 10 A |
| Mounting mode |
Rack-mounted |
| Rack units |
1U |
| Mounting position |
Horizontal |
| Input current limits |
10 A |
| Load capacity |
2300 VA |
| Network frequency |
50/60 Hz |
| Number of input connectors |
1 |

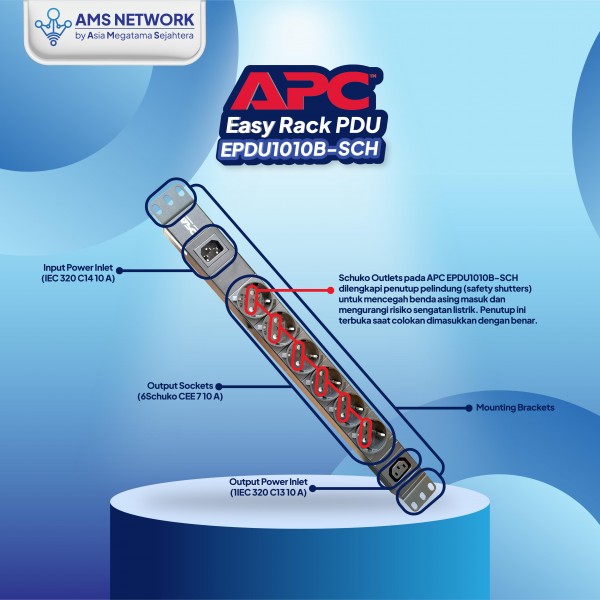

| Outlet type and quantity |
6Schuko CEE 7 10 A
1IEC 320 C13 10 A |
Environment
| Product certifications |
CE |
| Ambient air temperature for operation |
-5…45 °C |
| Operating altitude |
0...10000 ft |
| Ambient air temperature for storage |
-25…65 °C |
| Storage Relative Humidity |
5…95 % |
| Storage altitude |
0.0000000000…15240.0000000000 m |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
150 mm |
| Package 1 Width |
80 mm |
| Package 1 Length |
560 mm |
| Package 1 Weight |
1.1 kg |
Contractual warranty
| Warranty |
1 year repair or replace |
